FSD Series

Self-Adjustable Crimping Tools
Self-Adjustable Crimping Tools

Features:

  • The die sets of FSD-06113 are made according to the first and the fourth parts of DIN standard 46228.
  • For crimping cable end-sleeves.
  • Easy operation with self-adjustable structure based on different size of terminals.
  • Precise crimping die sets and integral lock with self releasing mechanism ensure high-quality crimping effect after crimping repeatedly.
  • Accurate adjustment before ex works delivery Scientific leverage design saves energy when operating.
  • Due to best handle grasping position,light and compact structure and handle design ensure perfect crimping effect.
  • It can crimp all ranges of cable end-sleeves in one crimping position.
  • All stressed parts are made of special steel,and are specially hardened and tempered.

Technical Data

Model Range of Application Capacity
(mm2)
AWG Length
(mm)
Weight
(kgs)
FSD-06116
Cord End Terminals
0.08~16 12-4 190 0.47
FSD-06110 0.5~6 12-4 200 0.47
FSD-06113 0.5~6 12-4 190 0.47

Top

HSC8 Series

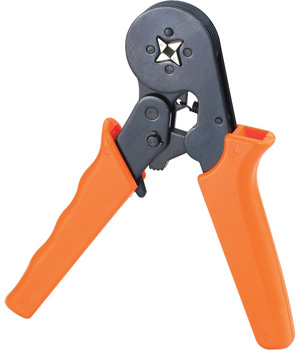

HSC8 6-4, HSC8 6-4A
HSC8 6-4, HSC8 6-4A

Features:

  • It is applicable for tubular bare terminals and pre-insulated terminal on non-welding connection complied with standard electrical connection.
  • When crimping, the terminal should be put into crimping pliers laterally. The demanded pressing force must be reached before the brake unit automatically release the jaw of the pliers. Thus high quality crimping standard could be ensured during repeatedly crimping.
  • Due to perfect gripping position fixed and logical and light structure and the handle shape design meeting human being engineering principle, it reduces fatigue degree.

Technical Data

Model Range of Application Capacity
(mm2)
AWG Length
(mm)
Weight
(kgs)
HSC8 6-4
Cord End Terminals
0.25~6.0 24-10 175 0.37
HSC8 6-4A 0.25~6.0 24-10 175 0.37
HSC8 6-6 0.25~6.0 24-10 175 0.37
HSC8 16-4 4~16 12-6 210 0.52

Top
