Crimping Tools

Energy Saving Crimping Tools

Home

AP Series

Energy Saving Crimping Tools
AP Series

Features:

  • For crimping insulated terminals and butt-connectors.
  • Crimping range: 20-12AWG (0.5~4mm2).
  • Precise crimping die sets and integral lock with self releasing mechanism ensure high-quality crimping effect after crimping repeatedly.
  • Scientific leverage design saves energy when operating.
  • Release locking if operates error.
  • Provided with one set of dies in handles for using easily.
  • Energy saving by humanization handle design.
  • There are on die sets at the side of the handale for using ant storing easily.

Technical Data

Model Range of Application Capacity
(mm2)
AWG Length
(mm)
Weight
(kgs)

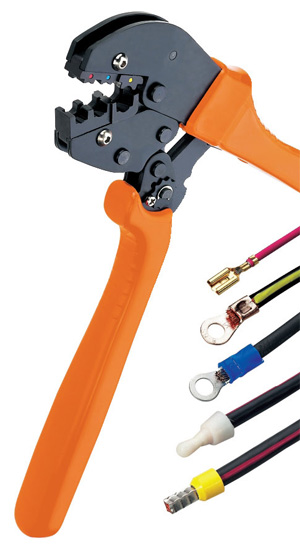

AP-30J
Insulated Terminals
0.5~6.0 20-10 250 0.55

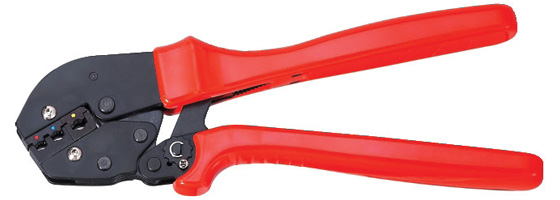

AP-03C     250 0.55

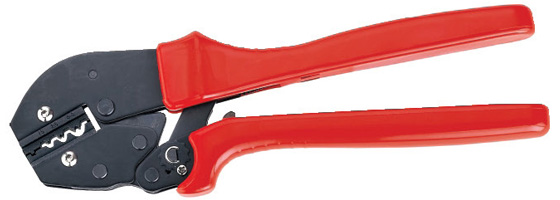

AP-10
Non-Insulated Terminals
1.5~6.0 16-10 250 0.55
AP-101 1.5~10 16-8 250 0.55

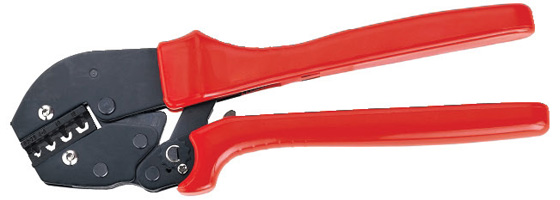

AP-1016 0.5~10 20-8 250 0.55

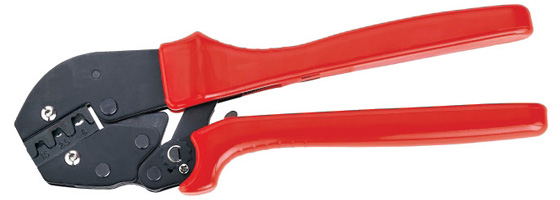

AP-03B
Non-Insulated Terminals
1.5~6.0 16-10 250 0.55

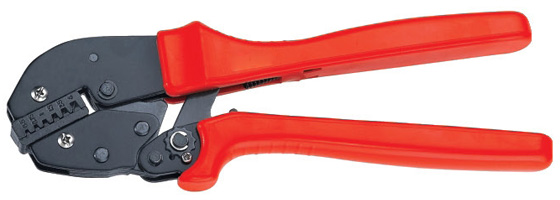

AP-04WFL
Cord End Terminals
0.5~4.0 20-12 250 0.55
AP-26TW 2x0.5~6.0 2x20-10 250 0.55

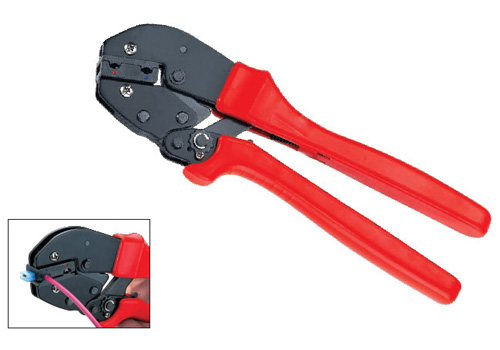

AP-07FL
1.25/2.5 Flag type receptacles
1.5~2.5 22-14 250 0.55

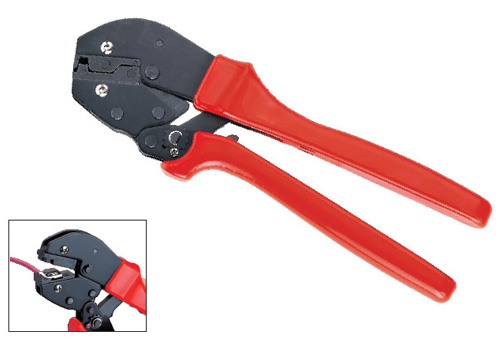

AP-05FL
4.8/6.3 Flag type receptacles
0.5~1.5 22-16 250 0.55

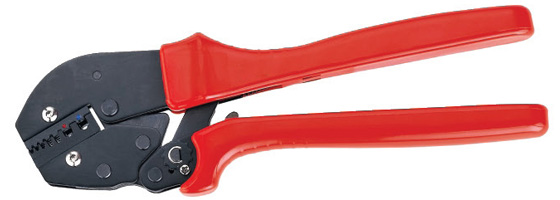

AP-06WF2C
Insulated Terminals
Cord End Terminals
0.5~2.5 20-14 250 0.55

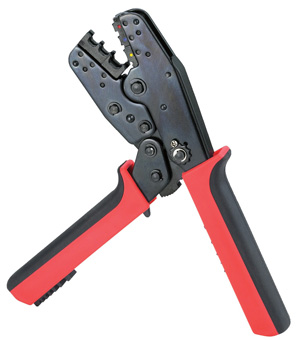

LAS-005
LAS-005
Model Range of Application Capacity
(mm2)
AWG Length
(mm)
Weight
(kgs)

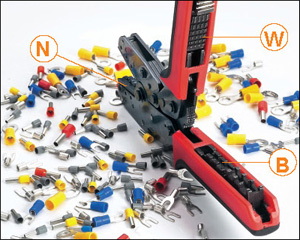

LAS-005 B
Insulated Terminals
0.5~6.0 20-10 230 0.68
W
Cord End Terminals
0.5~10 20-8
N
Non-Insulated Terminals
0.5~10 20-8

Top

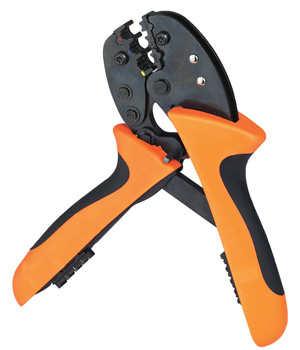

FSB Series

Energy Saving Crimping Tools
FSB Series

Features:

  • For crimping insulated terminals and butt-connectors.
  • Crimping range: 20-12AWG (0.5~4mm2).
  • Precise crimping die sets and integral lock with self releasing mechanism ensure high-quality crimping effect after crimping repeatedly.
  • Scientific leverage design saves energy when operating.
  • Release locking if operates error.
  • Provided with one set of dies in handles for using easily.
  • Energy saving by humanization handle design.
  • There are on die sets at the side of the handale for using ant storing easily.

Technical Data

Model Range of Application Capacity
(mm2)
AWG Length
(mm)
Weight
(kgs)

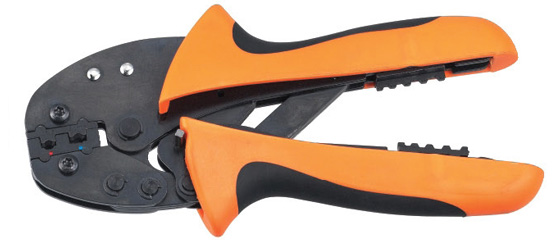

FSB-0525YJ
Insulated Terminal
0.5~1.5, 1.5~2.5 22-14 190 0.4

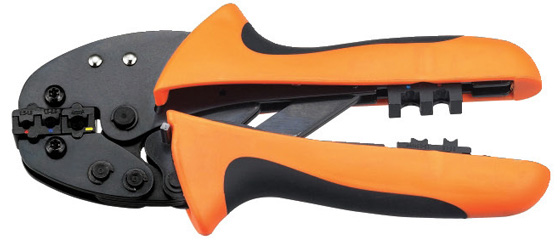

FSB-054YJ 0.5~1.5, 1.5~2.5, 4.0 22-12 190 0.4
FSB-056TX
Non-Insulated Terminal
1.5, 2.5, 4, 6 16-10 190 0.4

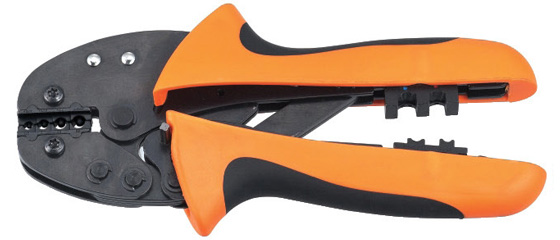

FSB-056TD 0.5~1, 1~1.5, 1.5~2.5, 4~6 22-10 190 0.4

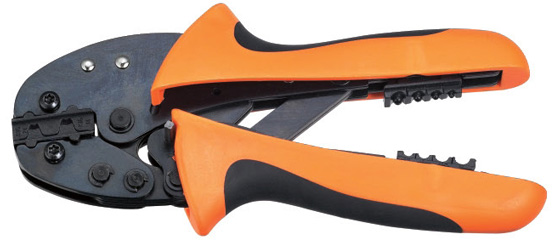

FSB-03BGT
Non-Insulated Terminal
0.25~1.0, 1.5~2.5 28-14 190 0.4

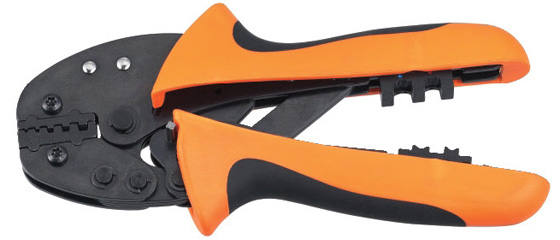

FSB-056GT
Cord End Terminals
0.5~0.75, 1.0~1.5, 2.5, 4, 6 22-10 190 0.4

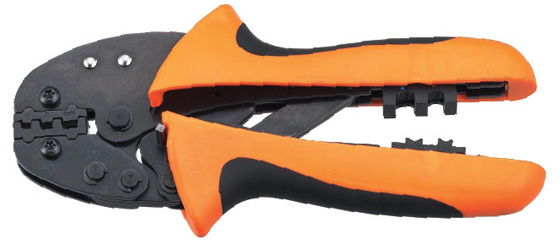

FSB-616GT 6, 10, 16 10-6 190 0.4

Top

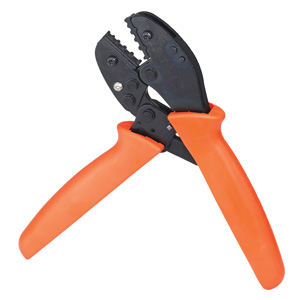

FSC Series

Energy Saving Crimping Tools
FSC Series

Features:

  • For crimping insulated terminals and butt-connectors.
  • Crimping range: 16-8AWG (1.5~10mm2).
  • Precise crimping die sets and integral lock with self releasing mechanism ensure high-quality crimping effect after crimping repeatedly.
  • Scientific leverage design saves energy when operating.
  • Release locking if operates error.
  • Provided with one set of dies in handles for using easily.
  • Energy saving by humanization handle design.

Technical Data

Model Range of Application Capacity
(mm2)
AWG Length
(mm)
Weight
(kgs)

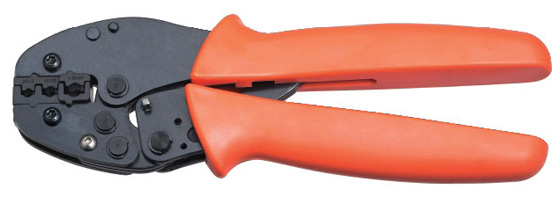

FSC-056YJ
Insulated Terminal
0.5~1.5, 1.5~2.5, 4~6 22-10 223 0.73

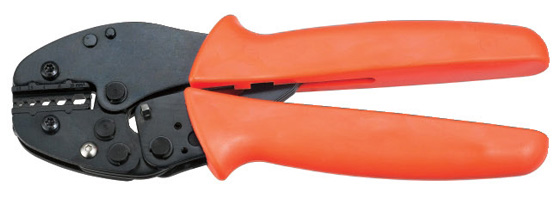

FSC-1510TX/SCX
Non-Insulated Terminal
1.25, 2.5, 4, 6, 10 16-8 223 0.73

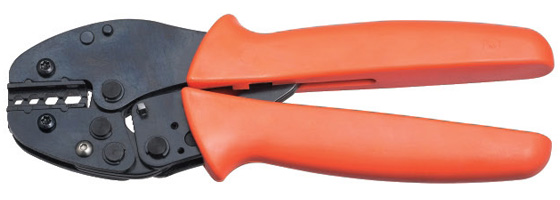

FSC-416TX/SCX 4, 6, 10, 16 12-6 223 0.73

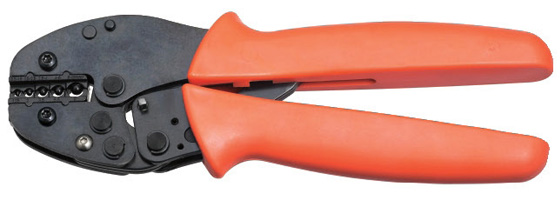

FSC-0510TD/SCD 0.5~1, 1~1.5, 1.5~2.5, 4~6, 6~10 22-8 223 0.73

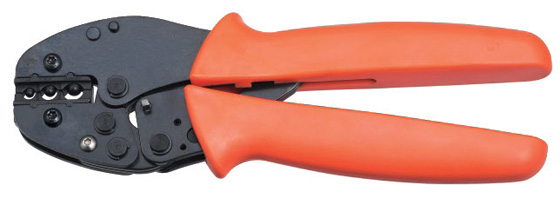

FSC-616TD/SCD 4~6, 6~10, 10~16 12-6 223 0.73

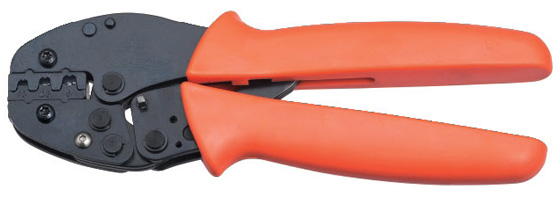

FSC-156B
Non-Insulated Terminal
1.25, 2.5, 4~6 20-10 223 0.73

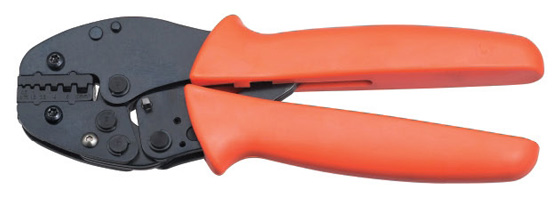

FSC-0510GF
Cord End Terminals
0.5~10 22-8 223 0.73

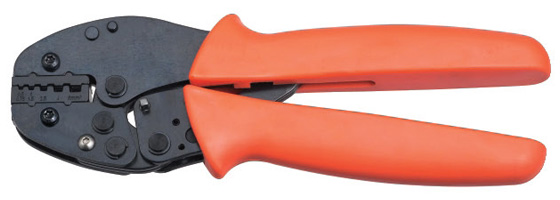

FSC-2056GF 0.5~0.75, 1~1.5, 2.5, 4, 6 20-10 223 0.73

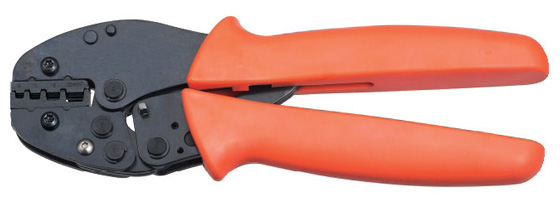

FSC-625GF 6, 10, 16, 25 10-4 223 0.73

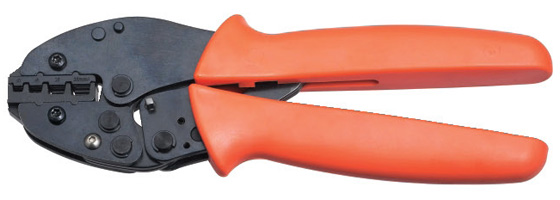

FSC-1035GF 10, 16, 25, 35 8-2 223 0.73

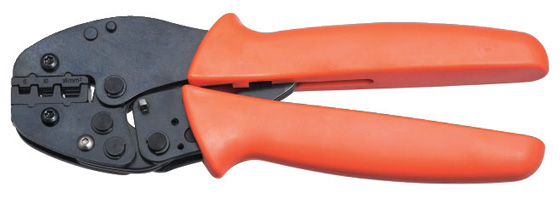

FSC-2616GF 6, 10, 16 10-6 223 0.73

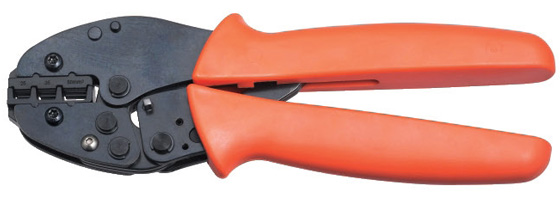

FSC-2550GF 25, 35, 50 4-1 223 0.73

Top

FSA Series

Energy Saving Crimping Tools
FSA Series

Features:

  • For crimping insulated terminals and butt-connectors.
  • Crimping range: 22-10AWG (0.5~6mm2).
  • Precise crimping die sets and integral lock with self releasing mechanism ensure high-quality crimping effect after crimping repeatedly.
  • Scientific leverage design saves energy when operating.

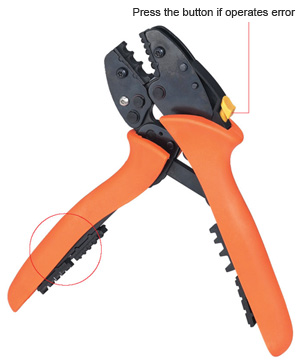

  • Release locking if operates error.
  • Provided with one set of dies in handles for using easily.
  • Energy saving by humanization handle design.
  • There are on die sets at the side of the handale for using ant storing easily.

Technical Data

Model Range of Application Capacity
(mm2)
AWG Length
(mm)
Weight
(kgs)

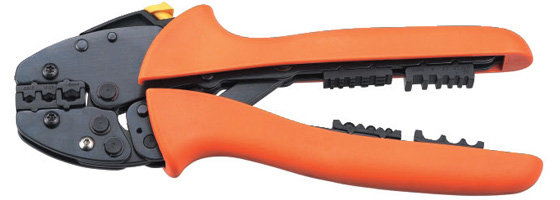

FSA-056YJ
Insulated Terminal
0.5~1.5, 1.5~2.5, 4~6 22-10 243 0.75

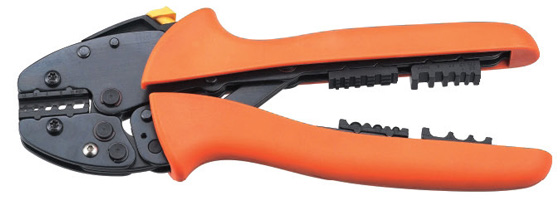

FSA-1510TX/SCX
Non-Insulated Terminal
1.5, 2.5, 4, 6, 10 16-8 243 0.75

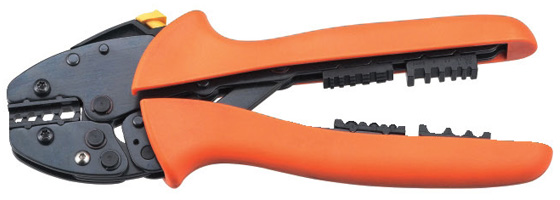

FSA-416TX/SCX 4, 6, 10, 16 12-6 243 0.75

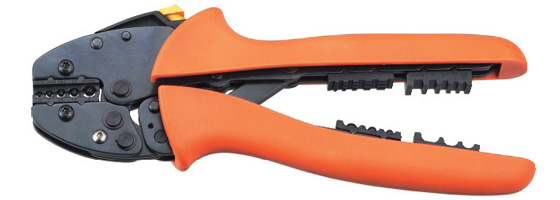

FSA-0510TD/SCD 0.5~1, 1~1.5, 1.5~2.5, 4~6, 6~10 22-8 243 0.75

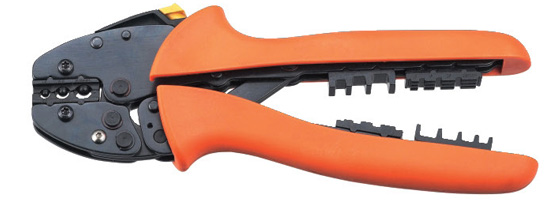

FSA-616TD/SCD 4~6, 6~10, 10~16 12-6 243 0.75

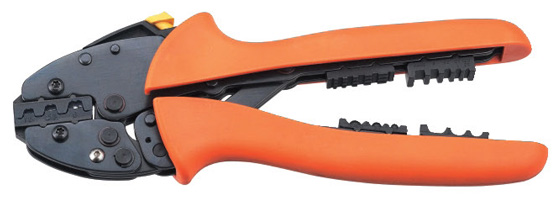

FSA-156B
Non-Insulated Terminal
1.5, 2.5, 4~6 20-10 243 0.75

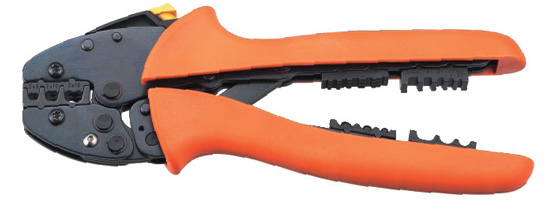

FSA-2616GR
Cord End Terminals
4~6, 6~10, 10~16 10-6 243 0.75

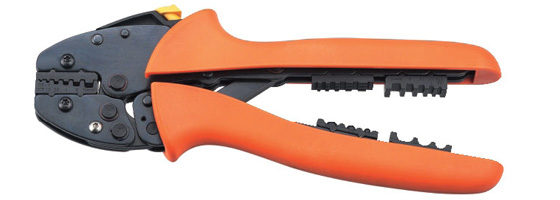

FSA-0510GF 0.5~0.75, 1~1.5, 2.5, 4, 6, 10 22-8 243 0.75
FSA-2056GF 0.5~0.75, 1~1.5, 2.5, 4, 6 20-10 243 0.75

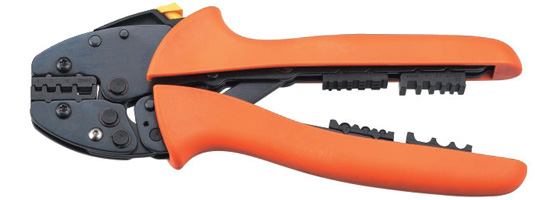

FSA-625GF 6, 10, 16, 25 10-4 243 0.75

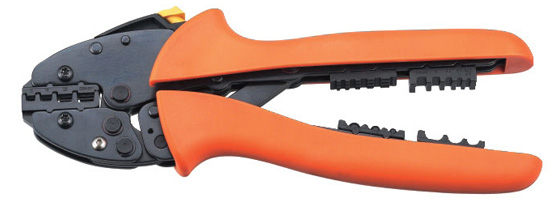

FSA-1035GF 10, 16, 25, 35 8-2 243 0.75
FSA-2616GF 6, 10, 16 10-6 243 0.75

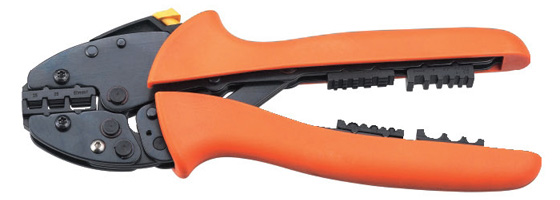

FSA-2550GF 25, 35, 50 4-1 243 0.75

Top

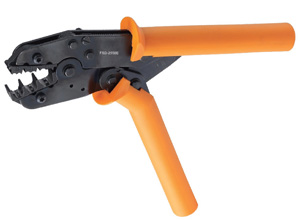

FSD Series

Energy Saving Crimping Tools
FSD Series

Features:

  • For crimping insulated and non-insulated cable end-sleeves.
  • Crimping range: 4-1AWG (25~50mm2).
  • Precise crimping die sets and integral lock with self releasing mechanism ensure high-quality crimping effect after crimping repeatedly.
  • Scientific leverage design saves energy when operating.
  • Release locking if operates error.

Technical Data

Model Range of Application Capacity
(mm2)
AWG Length
(mm)
Weight
(kgs)

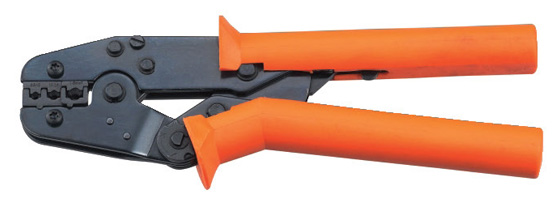

FSD-056YJ
Insulated Terminal
0.5~1.5, 1.5~2.5, 4~6 20-10 240 0.68

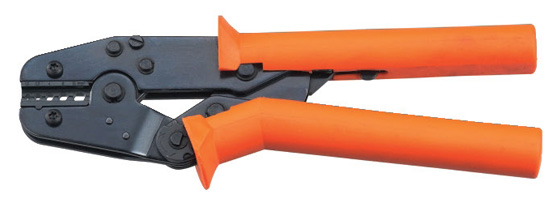

FSD-1510TX/SCX
Non-Insulated Terminal
1.5, 2.5, 4, 6, 10 16-8 240 0.68
FSD-416TX/SCX 4, 6, 10, 16 12-6 240 0.68
FSD-0510TD/SCD 0.5~1.5, 1.5~2.5, 4~6, 6~10 22-8 240 0.68

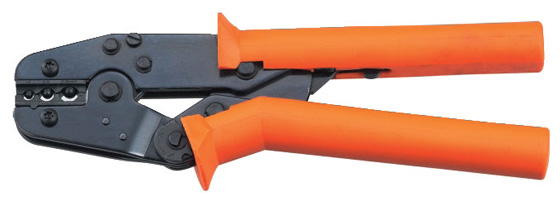

FSD-616TD/SCD 4~6, 6~10, 10~16 12-6 240 0.68

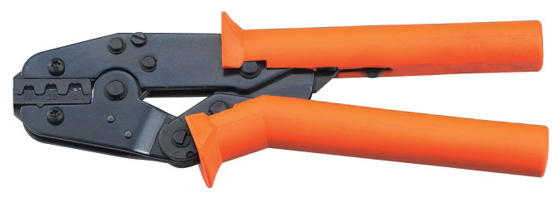

FSD-156B
Non-Insulated Terminal
1.5, 2.5, 4~6 20-10 240 0.68

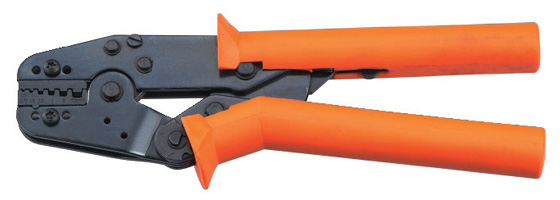

FSD-0510GF
Cord End Terminals
0.5~0.75, 1~1.5, 2.5, 4, 6, 10 22-8 240 0.68
FSD-2056GF 2x0.5~0.75, 1~1.5, 2.5, 4, 6 2x20-10 240 0.68

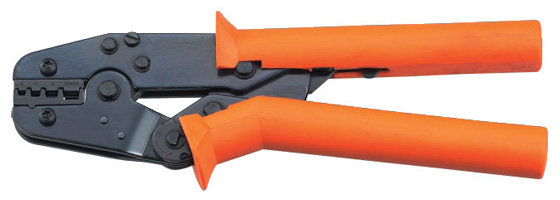

FSD-625GF 6, 10, 16, 25 10-4 240 0.75
FSD-1035GF 10, 16, 25, 35 8-2 240 0.75

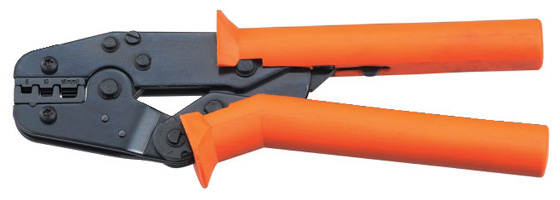

FSD-2616GF 2x6, 10, 16 2x10-6 240 0.75

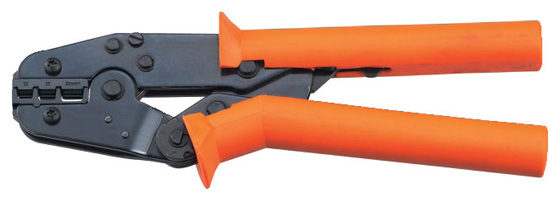

FSD-2550GF 25, 35, 50 4-1 240 0.75

Top
