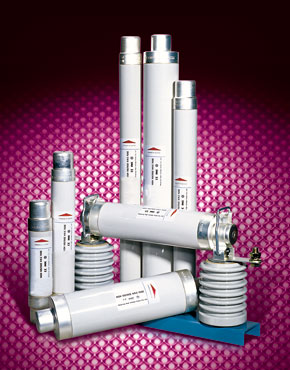

H.V. HRC Current-Limiting Fuses type S for Transformer Protection

Home
S for Transformer Protection
S
W for motor protection
W
F for transformer protection
F
O for Transformer Protection
O
Current-Limiting Fuses Current-Limiting Fuses Current-Limiting Fuses Current-Limiting Fuses Current-Limiting Fuses Current-Limiting Fuses
Current-Limiting Fuses Current-Limiting Fuses Current-Limiting Fuses Current-Limiting Fuses Current-Limiting Fuses Current-Limiting Fuses
Current-Limiting Fuses Current-Limiting Fuses Current-Limiting Fuses Current-Limiting Fuses Current-Limiting Fuses Current-Limiting Fuses
Current-Limiting Fuses Current-Limiting Fuses Current-Limiting Fuses Current-Limiting Fuses Current-Limiting Fuses Current-Limiting Fuses

Applications

  • H.V. current-limiting fuses type S is mainly used in AC50Hz, rated voltage 3.6-40.5kV, rated current up to 200A circuit for protection transformers and power equipment’s from overload and short-circuit. It can also be used with load switch, vacuum contact.
  • It conforms to IEC282-1, GB15166.2 and DIN standard.

Design Features

  • S type H.V. HRC current-limiting fuses are insert installation. The striker parallels to the fuse element made from pure silver. They are sealed in the fuse tube filled with chemically treated high-purity quartz sand. The fuse tube is made from heat resistance, high duty ceramic or epoxy glass. When fault circuit happens, the fuse link melts, the high-resistant metal wire paralleling to fuse links melts immediately at the appearance of the arc, and the striker jumps out to push the chained equipment contact, signaling the melting automatically cutting the circuit. The striker has spring type and powder type. Spring type striker use energy released by spring to push the striker; Powder type striker use high pressure caused by the lighting powder to push the striker. S type H.V. HRC current-limiting fuses have many merits as high current-limiting ability, high breaking capacity, quick and punctual in action, reliable in performance.

Mode And Implication

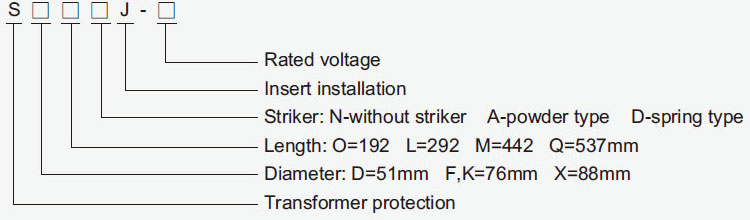

    Cross-reference:
    Mode And Implication

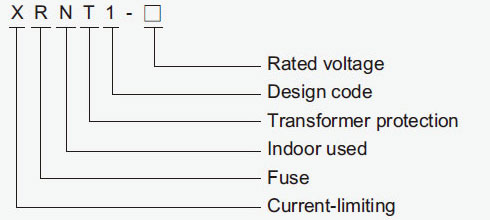

    Department Model:
    Mode And Implication
Basic Data
Models Ratedvoltage (KV) Rated current of the fuse links(A) Rated breakingcurrent (KA) Dimensions (mm) Figure 1 Weight (Kg)
Foreign Department Fig. ΦD L
SDO.J XRNT1 3.6 6.3, 10, 16, 20, 25, 31.5, 40 31.5 Figure 1 51 192 1.12
SDL.J XRNT1 7.2 6.3, 10, 16, 20, 25, 31.5, 40, 50, 63 31.5 51 292 1.47
SFL.J XRNT1 7.2 80, 100, 125, 160 31.5 76 292 3.15
SDL.J XRNT1 12 6.3, 10, 16, 20, 25, 31.5, 40 31.5 51 292 1.47
SFL.J XRNT1 12 50, 63, 71, 80, 100 31.5 76 292 3.15
SKL.J XRNT1 12 125 31.5 76 292 3.15
SXL.J XRNT1 12 160, 200 31.5 88 292 4.15
SDM.J XRNT1 24 6.3, 10, 16, 20, 25, 31.5, 40 31.5 51 442 2.7
SFM.J XRNT1 24 50, 63, 71, 80, 100 31.5 76 442 4.5
SKM.J XRNT1 24 125 31.5 76 442 4.5
SXM.J XRNT1 24 160 31.5 88 442 5.4
SDQ.J XRNT1 40.5 3.15, 6.3, 10, 16, 20, 25 31.5 51 537 2.9
SFQ.J XRNT1 40.5 31.5, 40 31.5 76 537 5.51
SXQ.J XRNT1 40.5 63 31.5 88 537 6.5
Note:
  • Under stipulated condition, min. breaking current of fuses could be as highas 2.5~3.0 times than rated current.
  • Selection of Prodper Fuse Links for Transformer Protection
    Transformer capacity(KVA) Transformer proimary voltage (KV)
    7.2 10 20 30
    Fuse model/Rated current(A) Fuse model/Rated current(A) Fuse model/Rated current(A) Fuse model/Rated current(A)
    50 SDL.J-7.2KV/ 8A SDL.J-12KV/ 6.3A SDM.J-24KV/ 3.15A SDQ.J-40.5KV/ 3.15A
    100 SDL.J-7.2KV/ 16A SDL.J-12KV/ 10A SDM.J-24KV/ 6.3A SDQ.J-40.5KV/ 6.3A
    125 SDL.J-7.2KV/ 20A SDL.J-12KV/ 12A SDM.J-24KV/ 6.3A SDQ.J-40.5KV/ 6.3A
    160 SDL.J-7.2KV/ 25A SDL.J-12KV/ 16A SDM.J-24KV/ 8A SDQ.J-40.5KV/ 6.3A
    200 SDL.J-7.2KV/ 31.5A SDL.J-12KV/ 20A SDM.J-24KV/ 10A SDQ.J-40.5KV/ 8A
    250 SDL.J-7.2KV/ 40A SDL.J-12KV/ 25A SDM.J-24KV/ 12A SDQ.J-40.5KV/ 10A
    300/ 315 SDL.J-7.2KV/ 50A SDL.J-12KV/ 31.5A SDM.J-24KV/ 16A SDQ.J-40.5KV/ 10A
    400 SDL.J-7.2KV/ 63A SDL.J-12KV/ 40A SDM.J-24KV/ 20A SDQ.J-40.5KV/ 16A
    500 SDL.J-7.2KV/ 80A SDL.J-12KV/ 50A SDM.J-24KV/ 25A SDQ.J-40.5KV/ 16A
    630 SDL.J-7.2KV/ 100A SDL.J-12KV/ 63A SDM.J-24KV/ 31.5A SDQ.J-40.5KV/ 20A
    750/ 800 SDL.J-7.2KV/ 125A SDL.J-12KV/ 80A SDM.J-24KV/ 40A SDQ.J-40.5KV/ 25A
    1000 SDL.J-7.2KV/ 160A SDL.J-12KV/ 100A SDM.J-24KV/ 50A SDQ.J-40.5KV/ 31.5A
    1250   SDL.J-12KV/ 125A SDM.J-24KV/ 63A SDQ.J-40.5KV/ 40A
    1600   SDL.J-12KV/ 160A SDM.J-24KV/ 80A SDQ.J-40.5KV/ 50A
    2000   SDL.J-12KV/ 200A SDM.J-24KV/ 100A SDQ.J-40.5KV/ 63A

    Dimensions

    Dimensions Dimensions Dimensions
    Dimensions Dimensions Dimensions
    Dimensions Dimensions Dimensions
    Figure 1
    Current-Limiting Fuses type S for Transformer Protection

    Characteristics Curve

    Time-current characteristics of fuse link type S Time-current characteristics of fuse link type S Time-current characteristics of fuse link type S Time-current characteristics of fuse link type S
    Time-current characteristics of fuse link type S Time-current characteristics of fuse link type S Time-current characteristics of fuse link type S Time-current characteristics of fuse link type S
    Time-current characteristics of fuse link type S
    Breaking-current characteristics of fuse link type S Breaking-current characteristics of fuse link type S Breaking-current characteristics of fuse link type S Breaking-current characteristics of fuse link type S
    Breaking-current characteristics of fuse link type S Breaking-current characteristics of fuse link type S Breaking-current characteristics of fuse link type S Breaking-current characteristics of fuse link type S
    Breaking-current characteristics of fuse link type S
    I2.t characteristics of fuse link type S I2.t characteristics of fuse link type S I2.t characteristics of fuse link type S I2.t characteristics of fuse link type S
    I2.t characteristics of fuse link type S I2.t characteristics of fuse link type S I2.t characteristics of fuse link type S I2.t characteristics of fuse link type S
    I2.t characteristics of fuse link type S
