Feature:

Neutral Bars
Neutral Bars
  • Brass earth, neutral bars, neutral links, Earthing blocks and Terminal blocks available in all sizes as per customer specification.
  • Brass neutral bars, terminals, terminal blocks and links up to 1 Metre also available.
  • 4 way and 8 way tin plated Nickel plated earth neutral bars for panel boards available.

Remark: For the Double row screw only for SP038 available, when order please supply drawing.

Top

SP028

SP028

Material:

  • PE, Polyethylene, good pliability, transparence, extensibility, resist dissolve, radiation . Working Temperature: - 40℃ to 65℃, short time is 80°C.
  • PA, Polyamide 66, 94V-2 grade. inflaming retarding, good resist dissolve, good bounce impact force, Working Temperature: - 30℃ to 110℃
  • Brass, screw is Iron plated zinc.
  • Voltage: 250 ~ 450V
  • Color: blue and green color as standard

Remark: We can according to customer require supply different size, such as, different length, width, hole diameter etc.

Technical Data

Item Spec. for Busbar
(W x H - Holes)
Dimensions(mm) Screw Plastic Setting
L1 L2 H W Φ
SP028-01 6 x 9 - 4 75 61.4 24.3 14.7 4.3 M4 x 8 PE PA
SP028-02 6 x 9 - 6 87.5 74 24.3 14.7 4.3 M4 x 8 PE PA
SP028-03 6 x 9 - 8 100 86.5 24.3 14.7 4.3 M4 x 8 PE PA
SP028-04 6 x 9 - 10 112.5 99 24.3 14.7 4.3 M4 x 8 PE PA
SP028-05 6 x 9 - 12 125 111.5 24.3 14.7 4.3 M4 x 8 PE PA

Dimensioned

Dimensioned

Top

SP029

SP029

Material:

  • PE, Polyethylene, good pliability, transparence, extensibility, resist dissolve, radiation . Working Temperature: - 40℃ to 65, short time is 80°C.
  • PA, Polyamide 66, 94V-2 grade. inflaming retarding, good resist dissolve, good bounce impact force, Working Temperature: - 30℃ to 110℃
  • Brass, screw is Iron plated zinc.
  • Voltage: 250 ~ 450V
  • Color: blue and green color as standard

Remark: We can according to customer require supply different size, such as, different length, width, hole diameter etc.

Technical Data

Item Spec. for Busbar
(W x H - Holes)
Dimensions(mm) Screw Plastic Setting
L1 L2 H W Φ
SP029-01 8 x 12 - 4 83.5 71 21.5 12 6.5 M5 x10 PE PA
SP029-02 8 x 12 - 6 101.5 88.5 21.5 12 6.5 M5 x10 PE PA
SP029-03 8 x 12 - 8 118.9 106.5 21.5 12 6.5 M5 x10 PE PA
SP029-04 8 x 12 - 10 135.5 124.5 21.5 12 6.5 M5 x10 PE PA
SP029-05 8 x 12 - 12 155 143 21.5 12 6.5 M5 x10 PE PA

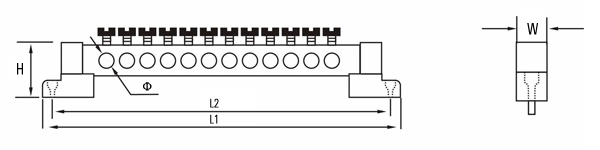

Dimensioned

Dimensioned

Top

SP030

SP030

Material:

  • PE, Polyethylene, good pliability, transparence, extensibility, resist dissolve, radiation . Working Temperature: - 40℃ to 65℃
  • PA, Polyamide 66, 94V-2 grade. inflaming retarding, good resist dissolve, good bounce impact force,
  • Working Temperature: - 30℃ to 110℃
  • Brass, screw is Iron plated zinc.
  • Voltage: 250 - 450V
  • Color: Blue and green color as standard

Remark: We can according to customer require supply different size, such as, different length, width, hole diameter etc.

Technical Data

Item Spec. for Busbar
(W x H - Holes)
Dimensions(mm) Screw Plastic Setting
L1 L2 H W Φ
SP030-01 6 x 9 - 7 51 35 28 21 5.2 M4 x 8 PE PA
SP030-02 6 x 9 - 8 51 35 28 21 5.2 M4 x 8 PE PA
SP030-03 6 x 9 - 10 51 35 28 21 5.2 M4 x 8 PE PA
SP030-04 6 x 9 - 12 51 35 28 21 5.2 M4 x 8 PE PA
SP030-05 6 x 9 - 15 51 35 28 21 5.2 M4 x 8 PE PA

Dimensioned

Dimensioned

Top

SP031

SP031

Material:

  • PE, Polyethylene, good pliability, transparence, extensibility, resist dissolve, radiation . Working Temperature: - 40℃ to 65℃
  • PA, Polyamide 66, 94V-2 grade. inflaming retarding, good resist dissolve, good bounce impact force,
  • Working Temperature: - 30℃ to 110℃
  • Brass, screw is Iron plated zinc.
  • Voltage: 250 - 450V
  • Color: blue and green color as standard

Remark: We can according to customer require supply different size, such as, different length, width, hole diameter etc.

Technical Data

Item Spec. for Busbar
(W x H - Holes)
Dimensions(mm) Screw Plastic Setting
L1 L2 H W Φ
SP031-01 6 x 9 - 8 86 58 43 11.5 4.3 M4 x 7 PE PA
SP031-02 6 x 9 - 10 86 70 43 11.5 4.3 M4 x 7 PE PA
SP031-03 6 x 9 - 12 86 82 43 11.5 4.3 M4 x 7 PE PA
SP031-04 6 x 9 - 14 86 94 43 11.5 4.3 M4 x 7 PE PA
SP031-05 6 x 9 - 16 86 107 43 11.5 4.3 M4 x 7
SP031-06 6 x 9 - 18 86 120 43 11.5 4.3 M4 x 7
SP031-07 6 x 9 - 20 86 132 43 11.5 4.3 M4 x 7
SP031-08 6 x 9 - 22 86 144 43 11.5 4.3 M4 x 7 PE PA

Dimensioned

Dimensioned

Top

SP038

Brass Neutral Links
Brass Neutral Links

Size:

  • As per custom design or requirement

Threads:

  • ISO Metric (MM Threads)
  • BA, BSW (Inches), UNC, UNF or Any as per custom design.

Material:

  • IS: 319, CuZn39Pb3, CW614N, CZ121, and C37710
  • Any Special Brass Material Composition as per customers requirement

Finish and Coating:

  • Natural, Nickle Plated, Tin Plated brass terminals for PCB connector block or any coating as per customer specification.

Remark: For the Double row screw only for SP038 available, when order please supply drawing.

Technical Data for single row screw

Item Spec. for Busbar
(W x H - Holes)
Dimensions(mm) Screw
L Φ
SP038-01
6 x 9 - 4/1
32.5
4.3 M4 x 7
SP038-02 6 x 9 - 6/1 45 4.3 M4 x 7
SP038-03 6 x 9 - 7/1 25 4.3 M4 x 7
SP038-04 6 x 9 - 8/1 57 4.3 M4 x 7
SP038-05 6 x 9 - 9/1 63.7 4.3 M4 x 7
SP038-06 6 x 9 - 10/1 70 4.3 M4 x 7
SP038-07 6 x 9 - 12/1 82.5 4.3 M4 x 7
SP038-08 6 x 9 - 14/1 95 4.3 M4 x 7
SP038-09 6 x 9 - 16/1 107.5 4.3 M4 x 7
SP038-10 6 x 9 - 18/1 120 4.3 M4 x 7
SP038-11 6 x 9 - 20/1 132.5 4.3 M4 x 7
SP038-12 6 x 9 - 22/1 145 4.3 M4 x 7
SP038-13 6 x 9 - 24/1 157.5 4.3 M4 x 7
SP038-14
6 x 9 - 8/2
64.0
4.3 M4 x 7
SP038-15 6 x 9 - 9/2 70.5 4.3 M4 x 7
SP038-16 6 x 9 - 10/2 76.5 4.3 M4 x 7
SP038-17 6 x 9 - 12/2 89 4.3 M4 x 7
SP038-18 6 x 9 - 14/2 101.5 4.3 M4 x 7
SP038-19 6 x 9 - 16/2 114 4.3 M4 x 7
SP038-20 6 x 9 - 18/2 126.5 4.3 M4 x 7
SP038-21 6 x 9 - 20/2 139 4.3 M4 x 7
SP038-22 6 x 9 - 22/2 151.5 4.3 M4 x 7
SP038-23 6 x 9 - 24/2 164 4.3 M4 x 7

Dimensioned

Dimensioned

Top
