Motor Protection Circuit Breaker

Home

GV2

GV2-MGV2-M
GV2-MEGV2-ME
GV2-RSGV2-RS

Application:

  • DZ518(GV2) Series motor protecting breaker are mainly used fo the overload and shortcircuit protection of the motor in AC 50/60Hz, up to 660V, 0.1-80A power circuit, as a full-voltage starter to start and cut off the motor, under the AC3 load or for the overload and shortcircuit protection of the circuit and power equipment in the power distribution network.

Technical Data

DZ518(GV2-M/ME) DZ518(GV2-RS) DZ518(GV2-LS)
M/ME01C 0.1-0.16 RS01C 0.1-0.16
M/ME02C 0.16-0.25 RS02C 0.16-0.25
M/ME03C 0.25-0.40 RS03C 0.25-0.40 LS03 0.25-0.40
M/ME04C 0.40-0.63 RS04C 0.40-0.63 LS04 0.40-0.63
M/MEO5C 0.63-1 RS05C 0.63-1 LS05 0.63-1
M/MEO6C 1-1.6 RS06C 1-1.6 LS06 1-1.6
M/MEO7C 1.6-2.5 RS07C 1.6-2.5 LS07 1.6-2.5
M/MEO8C 2.5-4 RS08C 2.5-4 LS08 2.5-4
M/ME10C 4-6.3 RS10C 4-6.3 LS10 4-6.3
M/ME14C 6-10 RS14C 6-10 LS14 6-10
M/ME16C 9-14 RS16C 9-14 LS16 9-14
M/ME18C 10-16 RS18C 10-16 LS18 10-16
M/ME20C 13-18 RS20C 13-18 LS20 13-18
M/ME21C 17-23 RS21C 17-23 LS21 17-23
M/ME22C 20-25 RS22C 20-25 LS22 20-25
M/ME32C 24-32 RS32C 24-32

The rated power of three-phase electromtor controlled by breaker(GV2 motor circuit breaker)

Adjusting range of rated current (A) Standard power of three-phase electromotor( KW) AC-3 50/60Hz
230/240V 400V 415V 440V 500V 690V
0.1-0.16 - - - - - -
0.16-0.25 - - - - - -
0.25-0.4 - - - - - -
0.4-0.63 - - - - - 0.37
0.63-1 - - - 0.37 0.37 0.55
1-1.6 - 0.37 - 0.55 0.75 1.1
1.6-2.5 - 0.75 0.75 1.1 1.1 1.5
2.5-4 0.37 1.5 1.5 1.5 2.2 3
4-6.3 0.75 2.2 2.2 3 3.7 4
6-10 1.1 4 4 4 5.5 7.5
9-14 2.2 5.5 5.5 7.5 7.8 9
13-18 3 7.5 9 9 9 11
17-23 4 11 11 11 11 15
20-25 5.5 11 11 11 11 18.5
24-32 5.5 15 15 15 18.5 23

The disjointing current commuting value of breaker in instantmagnetic field

Rated current In(A) Adjusting range(A) Disjointing current(A)
0.16 0.1-0.16 1.5
0.25 0.16-0.25 2.4
0.4 0.25-0.4 5
0.63 0.4-0.63 8
1 0.63-1 13
1.6 1-1.6 22.5
2.5 1.6-2.5 33.5
4 2.5-4 51
6.3 4-6.3 8
10 6-10 138
14 9-14 170
18 13-18 223
23 17-23 327
25 20-25 327
32 24-32 416

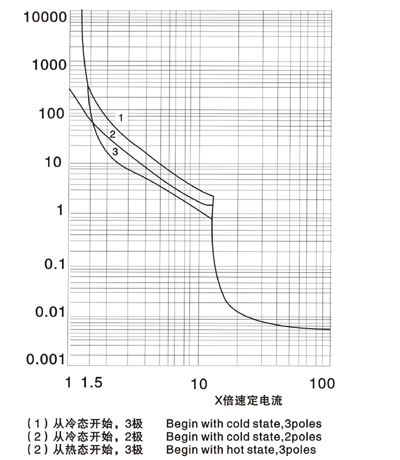

Characteristic Curve

Characteristic Curve

Dimensioned

Dimensioned

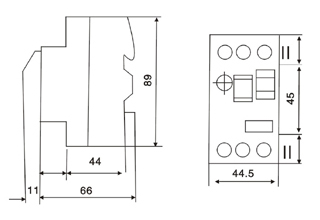

GV2-M
Dimensioned

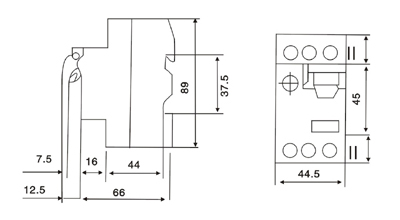

GV2-RS

Top
