JM1Z

JM1Z 2PJM1Z 2P

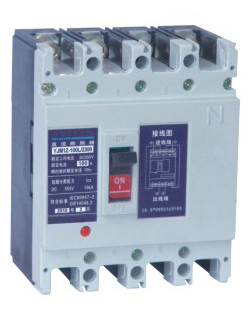

JM1Z 3PJM1Z 3P
JM1Z 4PJM1Z 4P

Application

  • JM1Z Series DC MCCB adopt international advanced design, manufacturing technology and developed a new circuit breaker, the rated voltage DC550V and below, rated current up to 800A of circuit. Circuit breaker has a short circuit, overload protection, to protect lines and power equipment from damage.

Standard

  • IEC60947-1 GB14048.1
  • IEC60947-2 GB14048.2
  • IEC60947-4-2 GB14048.6

Meaning and classification models

    Meaning and classification models

Features

  • JM1Z series DC circuit breaker, interrupter technique patented by the international first CCV, or quad speed and narrow arc breaking free consumer technology, so that arcing distance shorter, higher breaking capacity.
  • Small size, short time delay circuit accurate, complete specification.
  • Standards are usually chosen according to circumstances, for battery power system differential with, you can simplify the calculation of short circuit current, no need to consider resistance, cable cross-sectional area, copper content, limiting factor, cable parameters such as thermal stability. Simply click on the lower circuit breaker rated current level of choice, can achieve all three sections of selective protection, the performance of international standards.
  • JM1Z Series DC Molded Case Circuit Breaker in the corrosion resistance, the use of the world's most advanced anti-corrosion surface treatment to increase hardness and soft-nitriding process plus gloss plating, corrosion performance of the product higher than nickel, used for high protection level.

Normal operation and mounting requirement

  • Circumstance temperature -5°C ~ +40°C, Derating above 40 °C can be used.
  • Altitude above sea level less than 2000 m.
  • Humidity not exceeding 50% at 40°C and not exceeding 90% at 25°C.
  • Installation class II or III.
  • Pollution class 2.
  • Installation method DIN Rail mounting type.
  • The external magnetism shall not be more than 5 times of terrestrial one.
  • Product shall be installed at the place where there shall be no severe impact and vibration.
  • Product shall be vertically mounted onto standard Din rail 35mm.

Technical Data

Type Rate Current(A) Rated Voltage(V) Breaking Capacity(KA) Pole Arcing distance
JM1Z-100 10, 16, 20, 25, 32, 40, 50
63, 80, 100
DC250V
DC440V
DC550V
10KA/ 20KA 2
3
4
≤50
JM1Z-225 100, 125, 160, 180
200, 225
≤50
JM1Z-400 225, 250, 315, 350, 400 ≤100
JM1Z-630 400, 500, 630 ≤100
JM1Z-800 630, 700, 800 ≤100

Dimensioned

Dimensioned
  • 1) Undervoltage release
  • 2) Separated arcs
  • 3) Mounting plate
Type Pole Dimensioned
W W1 L L1 L2 H H1 H2 H3 H4 C D E F G W2 W3
JM1Z-100 2 64.5 30 150 185 132 68 86 24 7 4 88 35.5 50 22 17.5
3 92 60 150 185 132 86 104 24 7 4 88 35.5 50 22 17.5
4 92 60 150 185 132 86 104 24 7 4 88 35.5 50 22 17.5 122 90
JM1Z-225 2 74.5 35 165 215 144 86 110 24 5 4 102 31.5 50 22 17
3 107 70 165 215 144 103 127 24 5 4 102 31.5 50 22 17
4     165 215 144 103 127 24 5 4 102 31.5 50 22 17 142 105
JM1Z-400 2 150 96 257 357 224 105 155 38 8 6 128 64.5 89 65 Φ26
3 150 96 257 357 224 105 155 38 8 6 128 64.5 89 65 Φ26
4     270 370 234 110 160 43 8 6 134 70 89 65 Φ29 198 144
JM1Z-630 2 182 116 270 370 234 110 160 43 8 6 134 70 89 65 Φ29
3 182 116 270 370 234 110 160 43 8 6 134 70 89 65 Φ29
4     270 370 234 110 160 43 8 6 134 70 89 65 Φ29 240 174
JM1Z-800 2 210 140 280 280 243 106 145 33 30 128
3 210 140 280 280 243 106 145 33 30 128
